Details

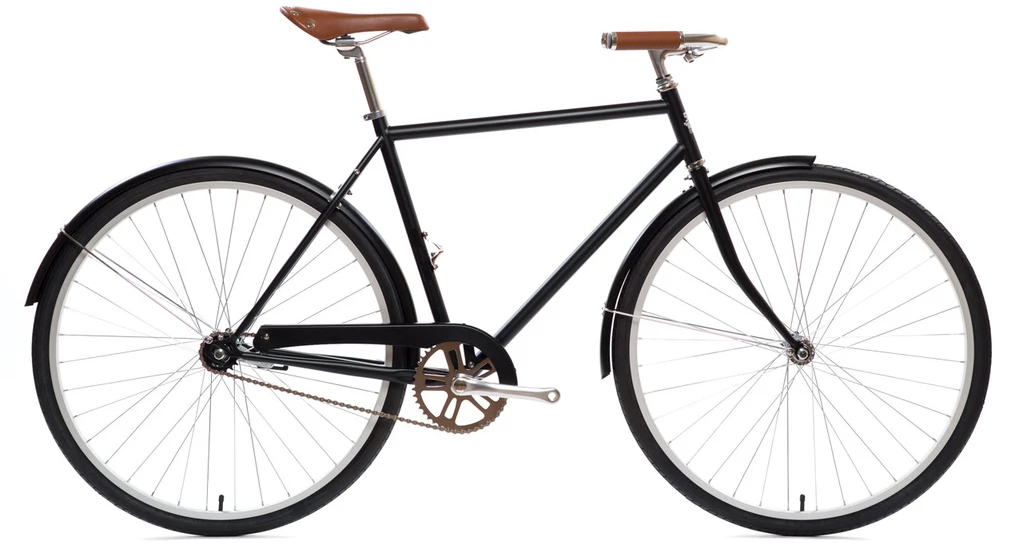

The City Bike Line is a thoughtfully designed, modern take on a classic style. Commuter-minded features such as fenders and a chain guard not only keep you and your bike clean but also contribute to a classic, refined design that includes a riveted leatherette saddle and retro-inspired metal pedals. Providing comfort without sacrificing style, the mustache-style handlebars outfitted with lock-on leatherette grips keep you in an upright riding position as you coast through the city streets on cushy 35c tires, while a coaster brake provides worry-free stopping power.
48cm | 53cm | 58cm | |
---|---|---|---|
A. Reach | 382mm | 389mm | 401mm |
B. Stack | 533mm | 543mm | 552mm |
C. Standover | 761mm | 789mm | 816mm |
D. Effective Top Tube | 545mm | 555cm | 570mm |
E. Head Tube Angle | 70° | 70° | 70° |
F. Head Tube Length | 130mm | 130mm | 140mm |
G. Seat Tube Angle | 73° | 73° | 73° |
H. Seat Tube Length | 480mm | 530mm | 580mm |
I. Bottom Bracket Height | 285mm | 285mm | 285mm |
J. Bottom Bracket Drop | 60mm | 60mm | 60mm |
K. Fork Rake/Offset | 60mm | 60mm | 60mm |
M. Wheelbase | 1062mm | 1073mm | 1088mm |
O. Chainstay Length | 448mm | 448mm | 448mm |
Specs
Frame | Hi Tensile Steel |
---|---|
Fork | Hi Tensile Steel, Lugged |
Wheels | 700c Wheel Set |
Hubs | Single Speed, Spacing: F: 100mm / R: 120mm |
Tires | 700c x 35, Suggested Max Tire: 35mm |
Brakes | Kick-back Coaster Brake |
Handlebars | Moustache Handlebars, Width: 560mm |
Stem | 1" Threaded Quill Stem, Clamp Diameter: 25.4mm, Length: 90mm, Rise: -17° |
Headset | 1" Threaded |
Seatpost | Steel, Diameter: 25.4mm |
Saddle | Leatherette Retro Style |
Pedals | Retro Style Metal Pedals |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Flat Black / 48cm | 796201613209 | 50-ELST-048-001 | 210000013917 |
Flat Black / 53cm | 796201613216 | 50-ELST-053-001 | 210000013916 |
Flat Black / 58cm | 796201613223 | 50-ELST-058-001 | 210000013915 |
